The high-performance 2-in-1 insulation digital multimeter

This insulation multimeter is the combination of a digital insulation tester that comes supplied with a full-featured, true RMS digital multimeter in a single compact, handheld unit, which enables maximum versatility for troubleshooting and preventative maintenance.

Features:

• PI/DAR timed ratio tests with TrendIt™ graphs identifies moisture and contaminated insulation problems faster
• Memory storage through Fluke Connect eliminates writing down results, reduces errors and saves data for historical tracking over time
• Temperature Compensation through app for establishing accurate baselines and relevant historical comparisons
• Live circuit detection prevents insulation test if voltage >30 V is detected for added user protection
• VFD low-pass filter for accurate motor drive measurements
• Auto-discharge of capacitive voltage for added user protection
• Insulation test of 0.01 MΩ to 2 GΩ
• Insulation test voltages of 50 V, 100 V, 250 V, 500 V for many applications
• AC/DC voltage, DC millivolts, AC/DC milliamps, resistance (Ω), continuity
• Capacitance, diode test, temperature, Min/Max, frequency (Hz)
• Auto power off to save battery power
• CAT III 1000 V, CAT IV 600 V measurement category
• Large display with backlight
• Rugged, utility case allows you to bring everything you need for the job
• Batteries: Four AA batteries (NEDA 15A or IEC LR6)

Contents:

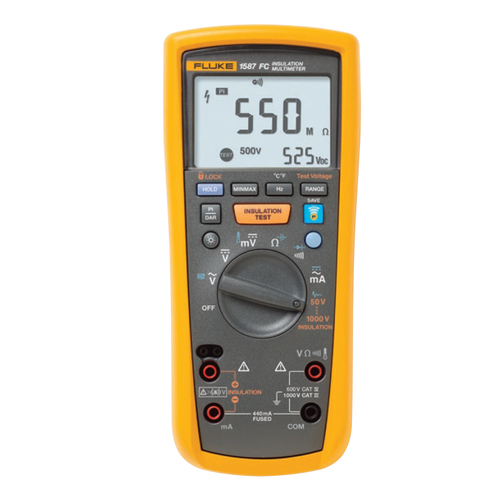

Fluke 1587 FC Insulation Multimeter

Remote probe

Test leads

Alligator clips

K-type thermocouple

Storage Case

User documentation
