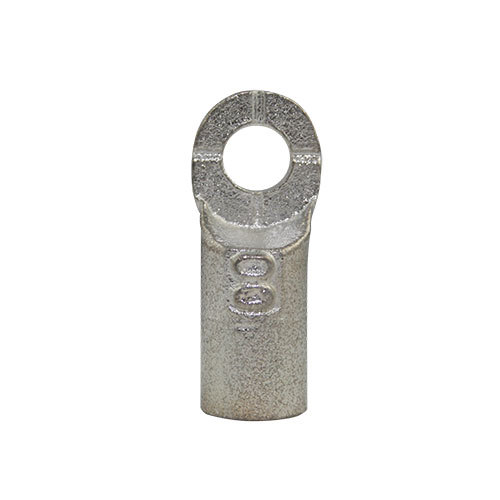

2/0GA Uni. Twist Tight Single Top Mount
Article Number:15104030
Quantity (Pack Size: 5) Unit Price
(Min) $7.470
$7.470

Total:  $37.348
Availability:

In Stock

Twist Tight Stud Top Single Barrel Top Mount Terminal

Gauge

2/0

Stud Size

3/8 in

Polarity

Universal

These terminals can be installed on 2/0 battery cable without crimping tools or solder (Not wielding cable)
Terminal are cast with 131 contact copper (93-95% copper) to ensure malleability and high conductivity
Exceeds SAE conductivity standard J163
Electro-tin plating for complete coverage, better appearance, high conductivity and resist corrosion
Raised lettering for easy identification of polarity and wire size
Extra deep chamfer helps wire installation
The inside of the barrel is threaded with two distinct stages of threads. The thread gravs the bare wire, and when tightened it gives an incredible pullout strength
Installation is done using only a screw driver and vice
RoHS compliant
Installation is completed quickly and easily
