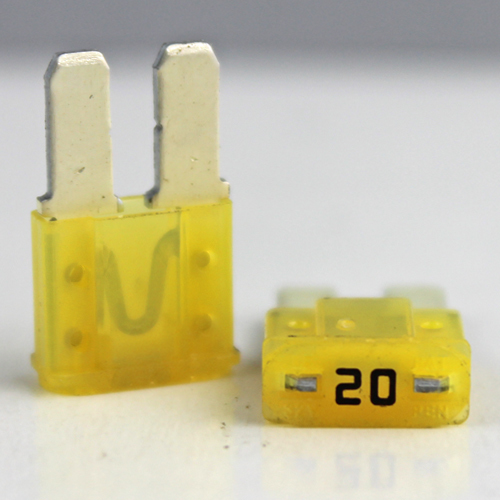

Micro 2 Blade Fuse 20 Amp
Article number073145020
Quantity (Pack Size: 25) Unit Price
25 (Min) $1.250
$1.250

Total:  $31.250
Availability:

In Stock

Register or log in to your Wurth Account to view your custom pricing and to order professional products.

MICRO2™ Blade Fuses

Current Rating (A)

20

Housing Color

Yellow

Typ. Voltage Drop (mV)

91

Cold Resistance (m?)

3.4

I2t (A2s)

397

Time-Current Characteristics

% of Rating
110, 135, 160, 200, 350, 600
Opening Time Min/Max
100 h / -, 0.75 sec / 120 sec, 0.30 sec / 50 sec, 0.15 sec / 5 sec, 0.04 sec / 0.50 sec, 0.02 sec/ 0.100 sec

The MICRO2™ Blade Fuse is the new standard for vehicle circuit protection. Its subminiature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MICRO2™ Fuse the recommended choice for protection.

Specifications
Voltage Rating: 32 VDC
Interrupting Ratings: 1000A @ 32 VDC
Operating Temperature Range: -40?C to +125?C (-40?F to +257?F)
