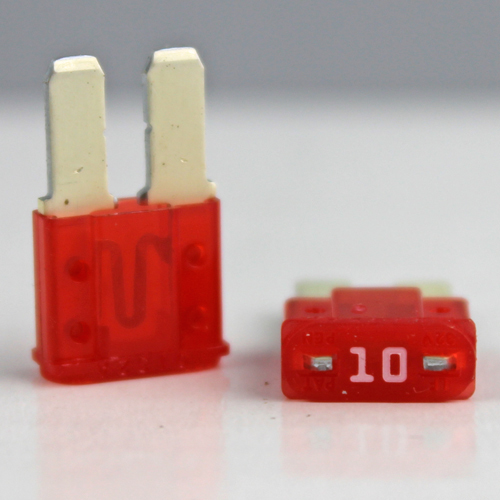

Micro 2 Blade Fuse 10 Amp
Article Number:073145010
Quantity (Pack Size: 25) Unit Price
25 (Min) $1.032
$1.032

Total:  $25.800
Availability:

In Stock

MICRO2™ Blade Fuses

Current Rating (A)

10

Housing Color

Red

Typ. Voltage Drop (mV)

102

Cold Resistance (m?)

7.7

I2t (A2s)

89

Time-Current Characteristics

% of Rating
110, 135, 160, 200, 350, 600
Opening Time Min/Max
100 h / -, 0.75 sec / 120 sec, 0.30 sec / 50 sec, 0.15 sec / 5 sec, 0.04 sec / 0.50 sec, 0.02 sec/ 0.100 sec

The MICRO2™ Blade Fuse is the new standard for vehicle circuit protection. Its subminiature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MICRO2™ Fuse the recommended choice for protection.

Specifications
Voltage Rating: 32 VDC
Interrupting Ratings: 1000A @ 32 VDC
Operating Temperature Range: -40?C to +125?C (-40?F to +257?F)
