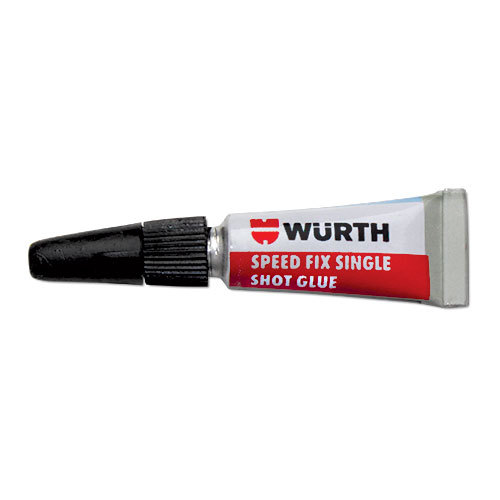

Speed Fix Single Shot Glue is a single component low viscosity cyanoacrylate adhesive, that is fast setting and ideal for bonding all types of rubbers and preassembled parts.
Curing Properties and Performance:
Ambient surface moisture will initiate the hardening process. Handling strength is reached in a short period of time and varies depending on environmental conditions and substrates being bonded. Product will continue to cure for at least 24 hours before full strength and resistances are developed.
The gap of the bond line will affect set speed. Smaller gaps tend to increase the speed. Activators can be applied to improve set speed but may also impair overall adhesive performance.
Directions
Surfaces to be bonded should be clean and dry. Dispense a drop or drops to one surface only. Apply only enough to leave a thin film layer after compression. Press parts together and hold firmly for a few seconds. Good contact is essential. An adequate bond develops in less than one minute and maximum strength is attained in 24 hours. Wipe off excess adhesive from the top of the container and recap. If left uncapped, it may deteriorate by contamination from moisture in the air.
Because it cures by polymerization, whitening may appear on the surface of the container or the bonded materials. Should this happen, wipe surfaces well with acetone.
Storage
Product should be stored unopened in a cool, dry place out of direct sunlight. Product can be refrigerated for improved shelf life but should be brought back to room temperature before use.
Physical Properties
Monomer (Liquid): Ethyl Cyanoacrylate base, Colorless, 18 cP viscosity @ 68°F, 1.06 g/cc gravity, 185°F flash point, 1 year unopened shelf life @ 40°F.
Polymer (Cured): Colorless, -65°F to 225°F service temp. range, 322°F softening point, 1.49 refractive index (ND 20), 24 hr. full cure time, 11.6 dielectric strength (KV/mm), 5.4 dielectric constant @ 1Kc, .000114 COE (in./in./F), 2700 psi tensile strength (steel/steel), Nitromethane/Acetone/Dimethylformamide solubility.
Military Specs: Mil-A-46050C, Type II, Class 1.
Setting Time (68°F, 65% R.H.): Steel/5-8 sec., Aluminum/7-12 sec., Neoprene/<5 sec., ABS/3-5 sec., Polycarbonate/5-9 sec., PVC/4-8 sec.
Performance of Cured Materials (Tensile Shear
Strength after 48 hrs. at 20° to 25°C): Blasted
Steel/16-22 N/mm2, Etched Aluminum/13-20 N/mm2, Neoprene/>10 N/mm2, ABS/>6 N/mm2, Polycarbonite/>5 N/mm2, PVC/>6 N/mm2.
Chemical Resistance (Sheer strength on steel
after 12 month soak): Motor Oil/100% strength,
Gasoline/100%, Tricloroethane/100%, Freon TA/100%, 10% NaOH/0%, 10% Hcl/0%, Water/0%.
