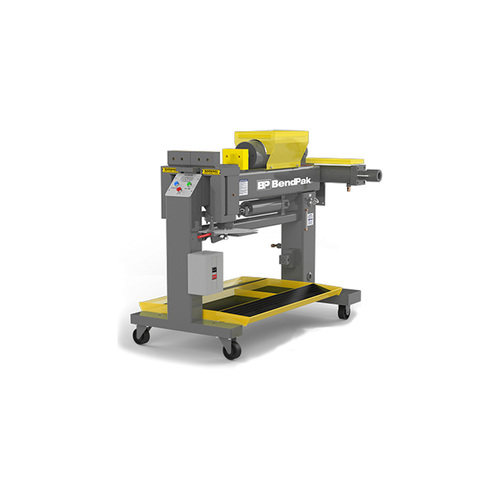

3-Button Control Automatic Pipe Bender
Article number198518153
Quantity (Pack Size: 1) Unit Price
(Min) $10,695.000
$10,695.000

Total:  $10,695.000

This article ships from a third-party supplier.
Register or log in to your Wurth Account to view your custom pricing and to order professional products.
TubeBend/1302BAS-DLX-601 - The BendPak 1302BAS series is comprised of powerful automatic exhaust pipes benders designed to expedite the bending process. A convenient, space-saving, side-loading swager, dual-function, end-finishing unit for extremely precise OE expansions and flares.
Quick-change bending dies
With simple, twistable locks and quick-change bending dies, you’ll be cycling through bending projects faster than any of your competitors. Let them try to play catch-up with their cheap imitation pipe benders while you run ahead with the best. You’ll be glad you went with the world leader in pipe bending.
180° bending capacity
The number one request our pipe bender customers have is simply to get the deepest bend possible. We figure a U-shape is pretty darn good. If you need to bend more than 170°, ask about our 180° dies. Our pipe benders perfectly bend on a 5” radius, never permitting pipe sticking or hang-ups. Our unique relief cut design keeps a uniform bend throughout the entire bend cycle and prevents excessive crimping or deformation from costing you money and wasting your precious time.

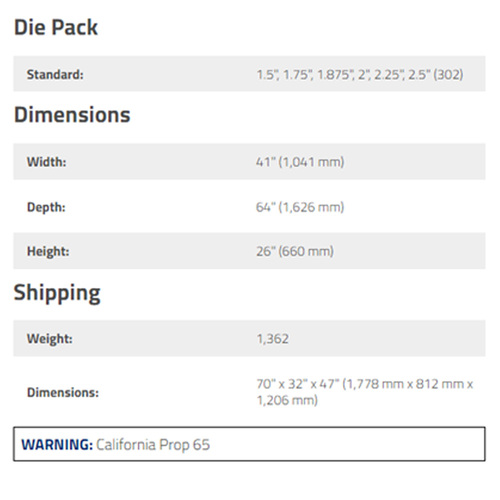

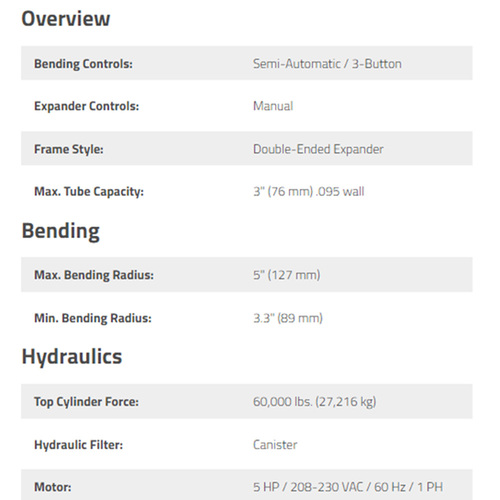

Specification:

  • 2 separate end-finishing units at rear for all necessary flaring and expanding
  • 3-button control for automatic or manual bending operations
  • Comes complete with quick release bending and finishing dies
  • Includes high-speed clampless swager and internal expander
  • Easy-to-use drop-in collar makes swaging operations quick and efficient
  • Twist-lock tooling
  • Integrated power-relief control valve
  • Pass-through cylinder stem passes completely through the primary frame
  • Rigid 6" x 6" x 3/8" welded-steel tube frame
  • Commercial-grade hydraulic cylinders
  • All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
  • Quick-release bending dies for reduced set-up times
  • Bending heads precision grounded to within .002"
  • Enclosed controls keep your bending area clutter-free
  • 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
  • Standard grease fittings allow for simple lubrication
  • NEMA rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
  • Pressure gauges let you know exactly what the system pressures are at all times
  • Industrial grade casters help you easily move the bender around your shop
  • Remote foot operated controls for added long-distance control
  • Adjustable pressure valve located right up front
  • One piece barrel ensures that the bending gates stay perfectly aligned with the ram
  • Heat-treated tooling for greater service life
  • Convenient tool trays keep your tooling organized
  • Strong, 5 HP energy efficient motor delivers maximum performance
  • Direct-drive, high-speed, 4 gpm pump
  • Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
  • Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
  • Canister oil filter in the hydraulic system keeps the oil nice and clean
  • Oil sight-gauges allow you to visually inspect oil levels

BENDPAK NUMBER #5115180
For warranty information, shipping, and FAQ, please visit: BendPak info page
