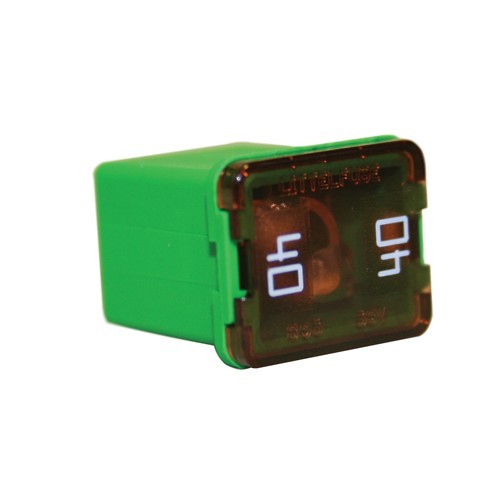

J-Case Fuse 40 Amp Low Profile
Article Number:17311240
Quantity (Pack Size: 10) Unit Price
10 (Min) $4.250
$4.250

Total:  $42.500 Sale Price
Availability:

In Stock

LOW PROFILE Jcase™ High Amp Fuses

Amp.

40

Color

Green

The Low Profile JCase™ fuse has similar performance characteristics as the standard JCase™ fuse. The lower overall height reduction allows for more space and weight savings and also allows for a shorter male blade terminal, saving additional weight and material savings in fuse box designs.

Voltage Rating: 58 VDC
Interrupting Rating: 1000A @ 58 VDC
Operating Temperature Range: -40?F to +257?F
Insertion Force: 53N Max (12lb.)
Extraction Force: 9N Min (2lb.)
